BTR EQUALIZER 1 INTAKE MANIFOLD - CATHEDRAL PORT - IMA-01

Rating:
0% of 100
$749.99
In stock
Only 2 left

More ways to pay at checkout

Synchrony Care ImageSynchrony Care Image
Synchrony Financing ImageSynchrony Financing Image
Curbside Pickup

Be advised: Image may differ from actual product.

BTR EQUALIZER INTAKE MANIFOLD - CATHEDRAL PORT - IMA-01

This intake is designed for combinations that are looking to make peak power between 6000 and 8000 rpm. Boosted engine combinations are actually more reliable making peak power in this higher RPM range compared to making peak power around 6500 rpm like most stock style intakes, provided the valve train is engineered properly.

- Cast from 319 Aluminum

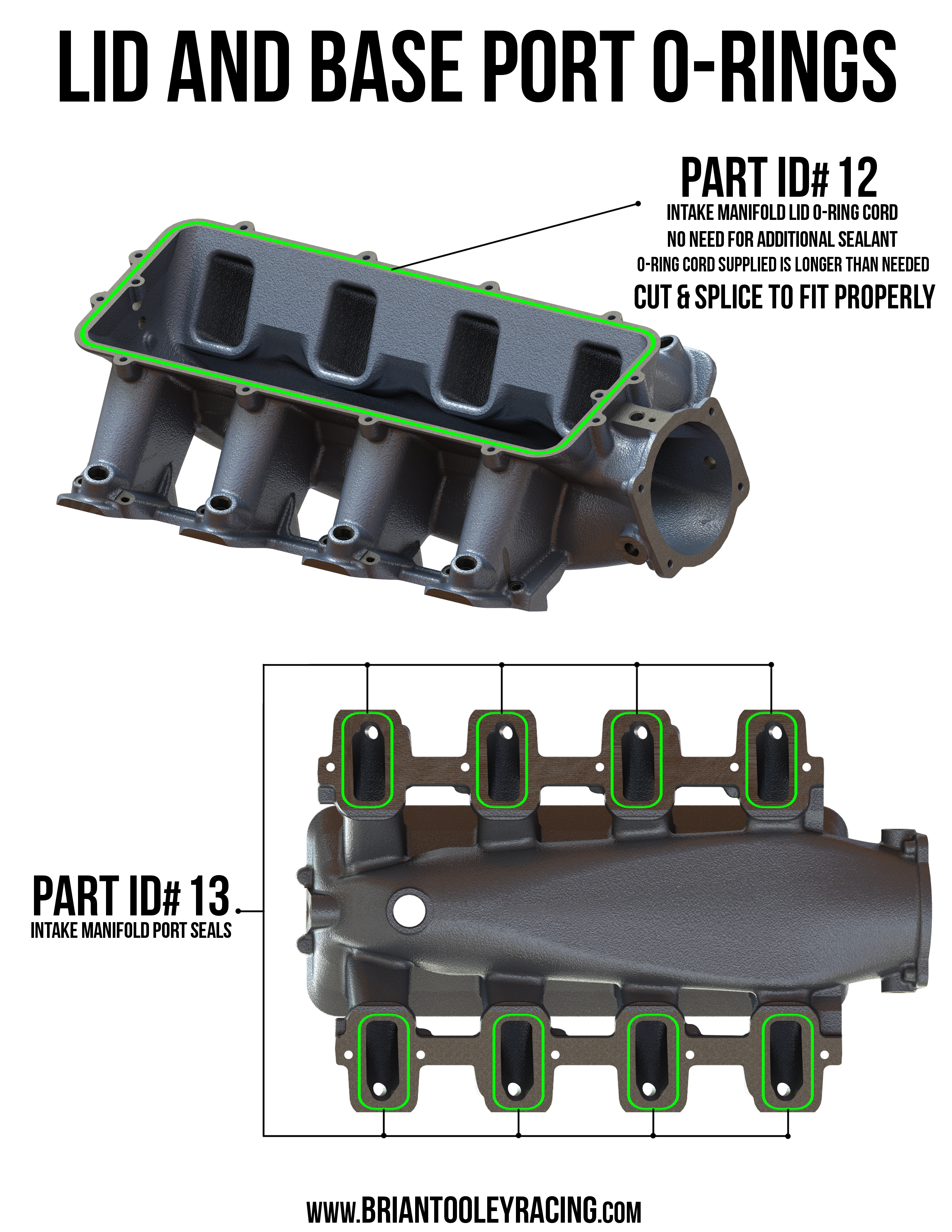

- O-Ringed port openings and Lid surface

- Easy Insert steep chamfer injector bores for trouble free injector o-ring insertion

- 6000-8000+ RPM Ideal operating range (for sub 4” stroke applications)

- Underslung plenum design for maximum hood clearance

-102mm profiled throttle bore

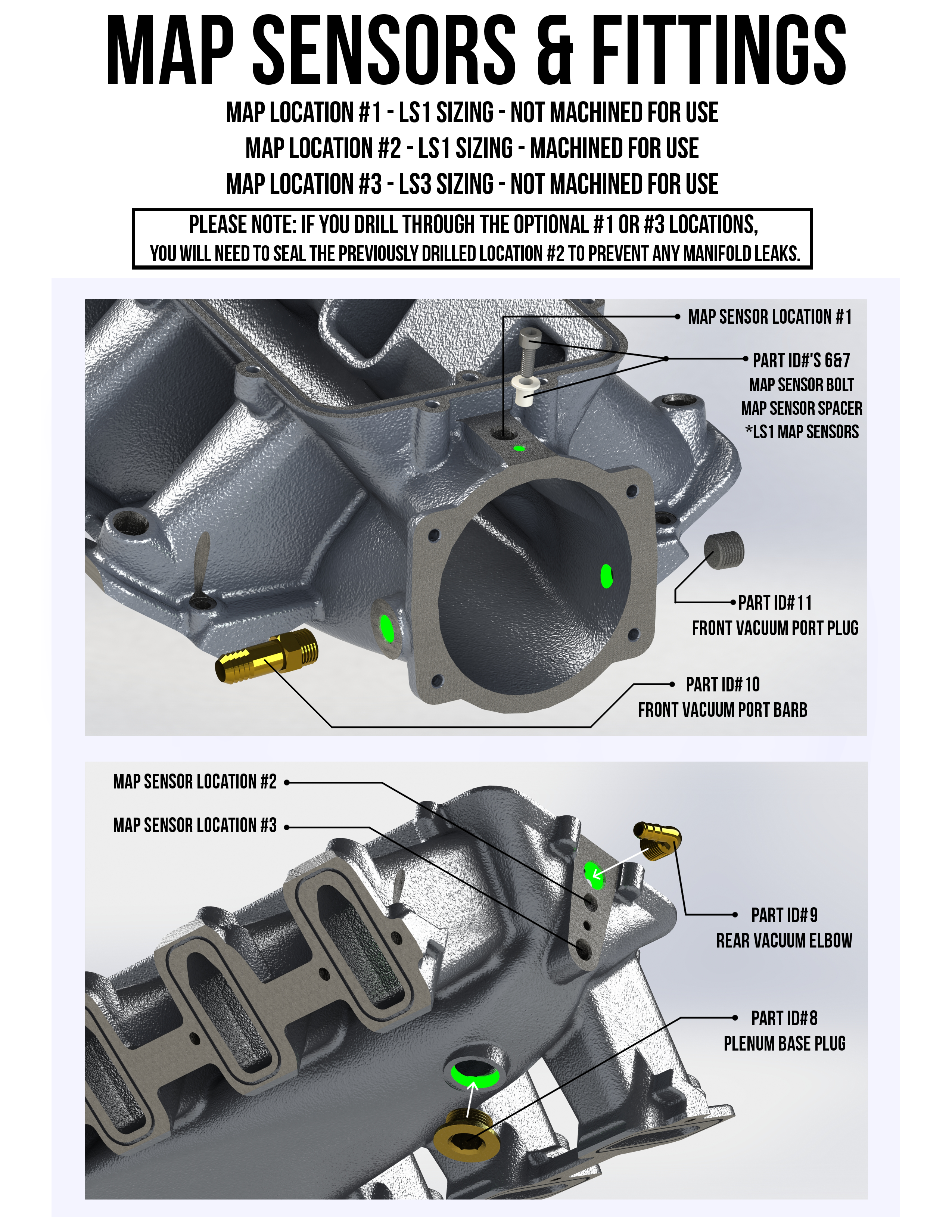

- 1 MAP sensor location in rear with 2 additional optional locations

- Additional user defined LS3 and LS1/LS2/LS6 MAP sensor bores

- ISO9001:2015 certified machining

- 2-piece design for easy porting access

- Lightweight CAD-generated design

- Profiled port openings for optimum out of the box performance

- All threads are roll form aircraft standard DSDV

- Clears F-Body cowls

- Clears C5 cowls with minimal massaging to intake

- Does NOT work with truck accessories

DESIGNED and MADE IN THE USA!!

Features
BTR SKU IMA-01
Length 13.500000
Width 6.810000
Height 6.500000
Weight 20.000000
Brand Brian Tooley Racing
Part Type Intake Manifold
Finish NATURAL
Manifold Material CAST ALUMINUM
Fuel Rails Included NO
Manifold Port Style LS1/LS2/LS6 - CATHEDRAL PORT
Engine Type Gen III/Gen IV LS
Manifold Fueling Style EFI
